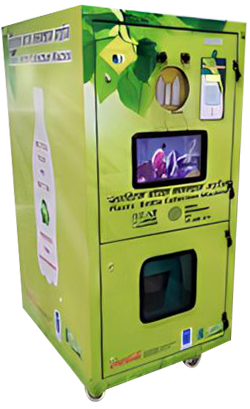

Technical Specifications : Biocrux RVMD-C20

Reverse Vending Machine-Digital Features (outer):

DIMENSIONS:

• Overall Height: 1800 MM
• Overall Width: 800 MM
• Overall Depth: 1000 MM

Weight:

350 KG

Capacity:

400-450 bottles per hours

Digital Screen/Display:

20 Screen for display of mobile no pad /QR code and videos

BODY:

MS Steel

Size / Quality of Bottles:

Upto 2000ML bottle of PET/Plastics only

Features Inside (mechanics):

Motor:

2-3HP (2.2 KVA) – Crompton/Havells

Connection:

Single PHASE ( 230 V) / 3 PHASE (440 V)

Black Box:

Twin shaft with plating to crush and reduce waste volume upto 70%

Hopper:

Specially designed hopper – to absorb upto 2000ml bottle standing

Electric panel:

CE certified electric panel

Storage Bin :

Capacity :

400 – 500 crushed containers

Dimension :

600 L X 500 H X 500 W

Wheel :

Roller in bottom for free movement.
