Technical Specifications: BIOCRUX C

Details Machine Features:

DIMENSIONS:

Overall Height: 1800 MM
Overall Width: 800 MM
Overall Depth: 1000 MM

Weight:

350 KG

Capacity:

300-350 bottles and cans per hours

BODY:

MS Steel

Indicator:

To indicate machine is running

Size/Quality of Bottles:

Upto 2000ML bottle of PET/Plastics or upto 300 ml cold drink cans

WINDOW in bottom :

300MM X 300MM

Features Inside (mechanics):

Motor:

2-3HP – Crompton/Havels

Connection:

Single PHASE (230 V) 2.2 KVA / 3 PHASE (440 V) 2.2 KVA

Crushing Mechanism:

Twin shaft Roller with specially designed teeth

Black Box:

With E. Nickel/Chrome plating

Hopper:

Specially designed hopper – to absorb upto 2000ml bottle standing

Starter:

L & T for 3 phase/Single

Limit Switch Safety Switch:

Limit Switch ensure auto starts of machine. All doors attached with safety switch to prevent any accident

FLAP + Limit switch:

Regulate machine: Start/stop - Micro Hybrid

Storage Bin :

Capacity :

400-500 bottles or cans

Dimension :

650 L X 400 H X 400 W

Body :

MS and Acrylic window Roller in bottom for free movement

BIOCRUX C:

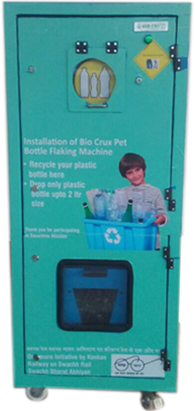

Biocrux C is an automatic Noiseless pet/plastic bottle and can crushing machine. The machine is made with micro hybrid concept, it start and stop automatically based on the bottle/can feed. The mouth of the machine is attached with a flap which controls the movement of the machine. After crushing machine will stop automatically and remain shut till another bottle/can is fed in the machine. Each feed will reset the machine for next cycle as per time fixed in timer.
